Tuesday, April 21, 2015

Looking up specimen codes in GBIF using Google Spreadsheet

Playing with the my "material examined" tool I've been working on, I wondered whether I could make use of it in, say, a spreadsheet. Imagine that I have a spreadsheet of museum codes and want to look those up in GBIF. I could create a service for Open Refine but Open Refine is a bit big and clunky, you have to fire up a Java application and point your browser at it, and Open Refine isn't as intuitive or as flexible as a spreadsheet.

It turns that Google Spreadsheets supports custom functions, including importing JSDON from a remote data source. Following How to import JSON data into Google Spreadsheets in less than 5 minutes here's what to do:

  1. Create a new Google Spreadsheet.
  2. Click on Tools -> Script Editor.
  3. Click Create script for Spreadsheet.
  4. Delete the placeholder content and paste the code from this script.
  5. Rename the script to ImportJSON.gs and click the save button.
  6. Back in the spreadsheet, in a cell, you can type “=ImportJSON()” and begin filling out it’s parameters.

Lets imagine we have a spreadsheet with a specimen code in cell A1, e.g. "FMNH 187122".


To call the material examined service, we need a function like this:

=ImportJSON(CONCATENATE("http://bionames.org/~rpage/material-examined/service/api.php?code=",A1,"&match&extend=10"), "/hits/key,/hits/scientificName", "noHeaders")

Paste this into cell B1 (i.e., just to the right of the specimen code) and after a short delay you should see something like this:


The three parameters supplied to ImportJSON are are the query URL, written as a spreadsheet function that grabs the specimen code from cell A1, a list of the bits of data we want to extract from the result (expressed as JSON paths), and some options (in this case, don't show the headers). ImportJSON will grab the specimen code in cell A1, add it to the query URL, then output the results. You should see something like this:

The first column is the GBIF occurrence ID, the second is the scientific name (you can add more JSON paths to get more fields).

Note that we have multiple rows as there is more than one specimen with the code "FMNH 187122" in GBIF. Now, we can ask the material examined service to return only certain taxa (such as mammals) by adding the "scientificName" parameter:

=ImportJSON(CONCATENATE("http://bionames.org/~rpage/material-examined/service/api.php?code=",A10,"&scientificName=",B10,"&match&extend=10"), "/hits/key,/hits/scientificName", "noHeaders")

If you put the specimen code in cell A10, and the higher taxon "Mammalia" in cell B10, and paste the function above into cell C10, then you should see something like this:


Note that now we have a single row with the mammal specimen.

It's a little bit fussy (you need to get the ImportJSON script, and mess a bit with the parameters but it's quick and flexible, and you get all the power of a spreadsheet to help clean the data before trying to match it to GBIF. Plus you can do it all in your browser.

Wednesday, April 15, 2015

GBIF Ebbe Nielsen Challenge finalists announced

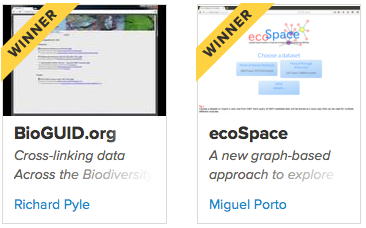

The six finalists for the GBIF Ebbe Nielsen Challenge have been announced by GBIF:

“The creativity and ambition displayed by the finalists is inspiring’, said Roderic Page, chair of the Challenge jury and the GBIF Science Committee, who introduced the Challenge at GBIF’s 2014 Science Symposium in October.

“My biggest hope for the Challenge was that the biodiversity community would respond with innovative—even unexpected—entries,” Page said. “My expectations have been exceeded, and the Jury is eager to see what the finalists can achieve between now and the final round of judging.”

The finalists all receive a €1,000 prize, and now have the possibility to refine their work and compete for the grand prize of €20,000 (€5000 for second place). F1F2F3 As the rather cheesy quote above suggests, I think the challenge has been a success in terms of the interest generated, and the quality of the entrants. While the finalists bask in glory, it's worth thinking about the future of the challenge. If it is regarded as a success, should it be run in the same way next year? The first challenge was very open in terms of scope (pretty much anything that used GBIF data), would it be better to target the challenge on a more focussed area? If so, which area needs the nost attention. Food for thought.

Linking specimen codes to GBIF

I've put together a working demo of some code I've been working on to discover GBIF records that correspond to museum specimen codes. The live demo is at http://bionames.org/~rpage/material-examined/ and code is on GitHub.

To use the demo, simply paste in a specimen code (e.g., "MCZ 24351") and click Find and it will do it's best to parse the code, then go off to GBIF and see what it can find. Some examples that are fun include MCZ 24351, KU:IT:00312, MNHN 2003-1054, and AMS I33708-051


It's proof of concept at this stage, and the search is "live", I'm not (yet) storing any results. For now I simply want to explore how well if can find matches in GBIF.

By itself this isn't terribly exciting, but it's a key step towards some of the things I want to do. For example, the NCBI is interested in flagging sequences from type specimens (see http://dx.doi.org/10.1093/nar/gku1127 ), so we could imagine taking lists of type specimens from GBIF and trying to match those to voucher codes in GenBank. I've played a little with this, unfortunately there seem to be lots of cases where GBIF doesn’t know that a specimen is, in fact, a type.

Another thing I’m interested in is cases where GBIF has a georeferenced specimen but GenBank doesn’t (or visa versa), as a stepping stone towards creating geophylogenies. For example, in order to create a geophylogeny for Agnotecous crickets in New Caledonia (see GeoJSON and geophylogenies ) I needed to combine sequence data from NCBI with locality data from GBIF.

It’s becoming increasingly clear to me that the data supplied to GBIF is often horribly out of date compared to what is in the literature. Often all GBIF gets is what has been scribbled in a collection catalogue. By linking GBIF records to specimen codes cited that are cited in the literature we could imagine giving GBIF users enhanced information on a given occurrence (and at the same time get citation counts for specimens The impact of museum collections: one collection ≈ one Nobel Prize).

Lastly, if we can link specimens to sequences and the literature, then we can populate more of the biodiversity knowledge graph
